Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors

Product Details

Place of Origin: CHINA

Brand Name: STARKING

Certification: CE, ISO,SGS, CCC

Model Number: SM001

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 15 - USD 250 per square meter

Packaging Details: 1, wooden box packing for LCL 2, bubble foam for FCL

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets / month

Get Best Price
Contact Now
Specifications
Highlight:

Warehouses Manual Rolling Shutters

,

Durable Manual Rolling Shutters

,

Manual Steel Roll Up Shutter Doors

Name:
Manual Rolling Shutters
Type 1:
Spring Box With Counter Spring
Type 2:
Torsion Spring Manual Operation
Type 3:
Manual Hoist Chain Operation
Type 4:
Steel Wire Rope Manual Operation
Max Weight:
250 KGS
Warranty:
5 Years
Sample:
Available
Max Area:
25 Square Meter
Name:
Manual Rolling Shutters
Type 1:
Spring Box With Counter Spring
Type 2:
Torsion Spring Manual Operation
Type 3:
Manual Hoist Chain Operation
Type 4:
Steel Wire Rope Manual Operation
Max Weight:
250 KGS
Warranty:
5 Years
Sample:
Available
Max Area:
25 Square Meter
Description
Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors



Manual steel roll up shutter doors / manual chain hoist operation steel rolling shutter doors



Basic info






  Spring box + counter spring Torsion spring Manual hoist chain Steel wire rope
Item number SMS001 SMS002 SMS003 SMS004
Max width 3000 mm 4000 mm 5000 mm 5000 mm
Max height 3000 mm 3000 mm 5000 mm 5000 mm
Max area 9 square meter 12 square meter 25 square meter 25 square meter
MOQ 1 set 1 set 1 set 1 set
Sample available available available available
Applications

Warehouses and storage facilities, Commercial establishments, Industrial premises, And more






Overview



Manually operated roller shutters are a type of roller shutter that is operated by a manual mechanism, as opposed to an electrified one.



We are able to supply four methods of operation for manually operated roller shutter doors:

  • Spring box + counter spring
  • Torsion spring
  • Manual hoist chain
  • Steel wire rope

Manual operation steel roller shutter doors are a type of door commonly used in commercial and industrial settings. They are designed to provide security, insulation, and ease of access.






Applications



  • Warehouses and storage facilities: These doors provide secure access to warehouses and storage areas, allowing for efficient loading and unloading of goods. They help to protect stored items from theft, damage, and harsh weather conditions.
  • Commercial establishments: Manual steel roller shutter doors are commonly used in shops, stores, and other commercial establishments. They offer security during non-operating hours and can be easily opened and closed during business hours.
  • Industrial premises: Manual operation doors are often found in factories, manufacturing plants, and industrial facilities. They provide easy access for personnel and equipment while also enhancing security.
  • Parking garages and car parks: Steel roller shutter doors are commonly used in parking garages and car parks to control access and provide security for vehicles. They can be manually operated by attendants or drivers.
  • Fire stations: These doors are used in fire stations to allow quick response times for emergency vehicles. They provide secure and efficient access to the fire trucks and equipment.
  • Schools and universities: Manual operation steel roller shutter doors are often used in educational institutions for various purposes. They can be utilized as classroom dividers, security doors for entry points, or for securing equipment and storage areas.
  • Sports facilities and gyms: Roller shutter doors are commonly used in sports facilities, gyms, and indoor arenas. They provide security when the facility is not in use and allow for easy access for athletes, staff, and equipment.
  • Residential properties: Some homeowners choose manual operation steel roller shutter doors for their garages or as a barrier for patios, balconies, or outdoor spaces. These doors offer security and protection from the elements.
  • Loading docks: Manual steel roller shutter doors are often used in loading dock areas to facilitate the movement of goods and ensure security during loading and unloading activities.
  • Cold storage facilities: These doors are suitable for cold storage facilities, such as refrigerated warehouses, as they provide insulation and help maintain temperature control.

These are just a few examples of the many applications for manual operation steel roller shutter doors. Their versatility, durability, and security features make them a popular choice in various industries.






Key Features / Benefits



  • Robust and durable construction: These doors are made from high-quality steel, making them resistant to impact, corrosion, and extreme weather conditions. They provide long-lasting protection for your premises
  • Manual operation: Unlike motorized roller shutter doors, these doors are operated manually. They are equipped with a hand crank or chain hoist mechanism, allowing you to easily open and close the door as needed.
  • Enhanced security: The sturdy steel construction and locking system of these doors offer excellent security against unauthorized entry. They provide a physical barrier that can deter burglars and vandals.
  • Thermal insulation: Manual operation steel roller shutter doors are often insulated, which helps to regulate the temperature inside the premises. This can lead to energy savings and improved comfort for employees or occupants.
  • Noise reduction: These doors feature a noise-reducing design that minimizes operational noise, making them suitable for environments where quiet operation is required, such as offices or residential areas.
  • Space-saving: Manual operation roller shutter doors roll up into a compact space above the doorway, allowing maximum use of available space both inside and outside the building.
  • Customizable options: Manual operation steel roller shutter doors can be tailored to meet specific requirements. They are available in various sizes, colors, and finishes, allowing you to match the door with the aesthetics of your building.
  • Easy maintenance: With regular maintenance and lubrication, these doors are designed to require minimal upkeep. This ensures trouble-free operation and extends their lifespan.

Manual operation steel roller shutter doors offer an affordable and practical solution for securing entrances and providing privacy. Whether you need them for a warehouse, storefront, or any other commercial or industrial application, they are a reliable choice.

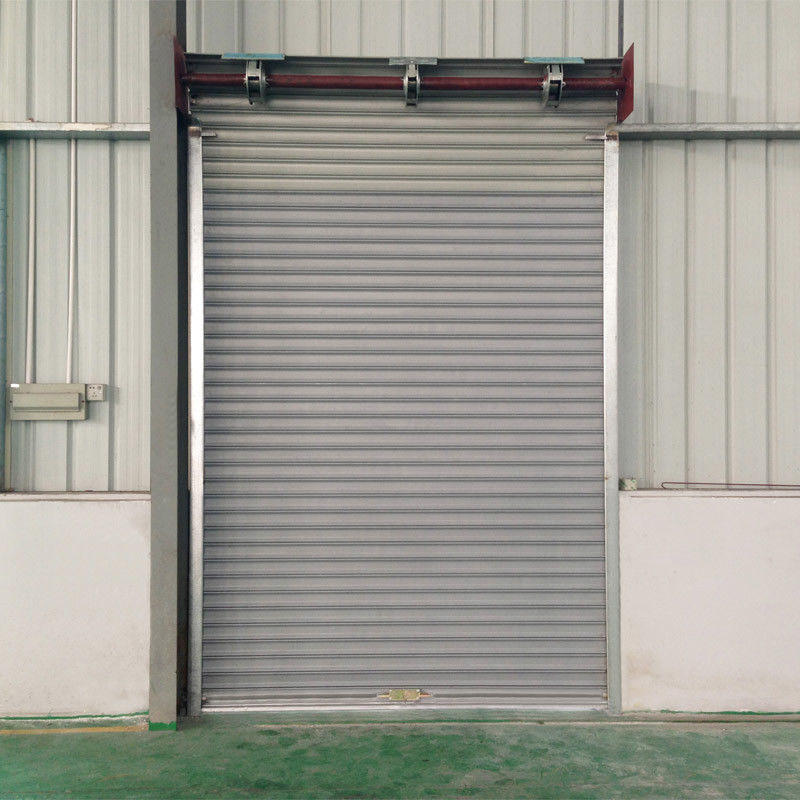

Photos for Spring box + counter spring manual operation system (SMS001)

Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors 0



Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors 1



Photos for Torsion spring manual operation system (SMS002)



Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors 2



Photos for manual hoist chain operation system (SMS003)



Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors 3

Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors 4



Photos for steel wire rope manual operation system (SMS004)

Warehouses Manual Rolling Shutters Durable Steel Roll Up Shutter Doors 5






Technical specifications for Spring box + counter spring manual operation system (SMS001)



This type of operation is ideal for smaller, lighter shutters where weight won’t be an issue. The spring-assisted roller door is balanced by a spring in the barrel, which is tensioned to adjust depending on the door’s weight and height. The door is simply “pushed” and “pulled” to operate.






Technical specifications for Torsion spring manual operation system (SMS002)



  • Torsion Spring: The torsion spring is a coiled spring that stores mechanical energy when twisted. It is typically made of high-quality steel and designed to provide the necessary torque to open and close the shutter door manually. The torsion spring must be carefully chosen to match the weight and size of the door for optimal performance.
  • Shaft Assembly: The torsion spring is mounted on a shaft assembly, which acts as the central axis for the door. The shaft is typically made of steel and is mounted horizontally above the door opening. It is supported by brackets or bearings at each end to ensure smooth operation.
  • Brackets and Mounting Hardware: The torsion spring system requires sturdy brackets and mounting hardware to securely attach the shaft assembly and other components to the building structure. These brackets and hardware should be made of corrosion-resistant materials to ensure the longevity of the system.
  • Safety Features: The manual operation system should incorporate safety features to prevent accidents and injuries. This may include a locking mechanism to keep the door in place when in the open or closed position, as well as a manual release mechanism in case of power failure or emergency situations.
  • Weight Capacity: The torsion spring and the entire manual operation system should be designed to withstand the weight of the door. The weight capacity will depend on the specific application and the size and material of the door. It is crucial to ensure that the torsion spring and operating mechanism can handle the full weight of the door to prevent excessive strain or failure.
  • Maintenance: Regular maintenance is essential to ensure the smooth functioning of the torsion spring manual operation system. This may include lubrication of moving parts, inspection of brackets and other components for wear and tear, and adjustments to the spring tension if necessary.



Technical specifications for manual hoist chain operation system (SMS003)



  • Hoist Chain: The hoist chain is a durable chain that is used to manually lift and lower heavy loads. It is typically made of high-strength steel and must have a sufficient load capacity to handle the weight of the load being lifted. The chain should be corrosion-resistant and properly lubricated for smooth operation.Chain Wheel or Drum: The chain wheel or drum is the component that the hoist chain wraps around. It is typically made of steel and is designed to transmit torque to the chain when operated manually.
  • chain wheel or drum should have teeth or grooves that engage with the links of the hoist chain to prevent slipping during operation.
  • Gearbox: The gearbox is a mechanical device that is connected to the chain wheel or drum. It provides the necessary gear reduction to enable easier lifting and lowering of the load. The gearbox should be durable, well-lubricated, and designed to handle the loads and forces expected during operation.
  • Load Capacity: The manual hoist chain operation system should have a specified load capacity, which is the maximum weight that it can safely lift. The load capacity should be determined based on the strength of the hoist chain, the gearbox, and other components involved. It is important not to exceed the maximum load capacity of the system to avoid overload and potential accidents.Hand Chain: The hand chain is the component that the operator uses to manually operate the hoist chain operation system. It is usually made of steel and should be ergonomically designed for comfortable gripping. The hand chain should have a sufficient length to ensure smooth operation and provide the necessary leverage for lifting and lowering the load.Brackets and Mounting Hardware: The manual hoist chain operation system requires sturdy brackets and mounting hardware to securely attach it to the structure or support. These brackets and hardware should be made of durable materials, such as steel, and designed to withstand the forces and loads generated during operation.
  • Safety Features: The manual hoist chain operation system should include safety features to prevent accidents and injuries. This may include a load limit device that prevents overloading, a failsafe braking system to hold the load securely when not in operation, and other mechanisms to ensure safe operation.
  • Maintenance: Regular maintenance is necessary to ensure the proper functioning and longevity of the manual hoist chain operation system. This may include lubrication of moving parts, inspection of chains, gearboxes, and other components for wear and tear, and adjustments or replacements as needed.






Technical specifications for steel wire rope manual operation system (SMS004)

  • Steel Wire Rope: The steel wire rope is the primary lifting component of the manual operation system. It is typically constructed with multiple strands of high-strength steel wires twisted or braided together to form a robust and flexible rope. The wire rope should have a sufficient breaking strength and diameter to handle the anticipated load capacity and lifting requirements. The rope should be properly lubricated and resistant to corrosion for smooth operation.
  • Drum: The drum is the component onto which the steel wire rope is wound. It provides the necessary support and winding mechanism for lifting and lowering loads manually. The drum should be made of sturdy material such as steel and be designed to prevent rope slippage during operation. It should also have appropriate grooves and flanges to ensure proper wrapping and unwrapping of the wire rope.Gearbox: The gearbox is a mechanical device that connects the drum to the manual operation handle or lever. It provides the necessary gear reduction to make lifting and lowering of loads easier. The gearbox should be durable, well-lubricated, and suitable for the expected loads and forces during operation.
  • Load Capacity: The steel wire rope manual operation system should have a specified load capacity, which indicates the maximum weight it can safely lift. The load capacity depends on the strength and diameter of the wire rope, the drum size, and the gearbox's capacity to handle the load. It is essential to operate within the specified load capacity to prevent overload and ensure safe operation.Manual Operation Handle or Lever: The manual operation handle or lever is the component that the operator uses to manually lift and lower loads using the steel wire rope. It should be ergonomically designed and comfortable to grip, allowing for easy operation. The length of the handle or lever should provide sufficient mechanical advantage for the operator to apply the necessary force to lift and lower loads smoothly.
  • Brackets and Mounting Hardware: The steel wire rope manual operation system requires sturdy brackets and mounting hardware to secure it to the structure or support. These brackets and hardware should be made of durable materials such as steel and designed to withstand the forces and loads generated during operation.Safety Features: Safety features are crucial to prevent accidents and ensure operator safety. Some common safety features in a manual operation system include a load limit device to prevent overloading, a failsafe braking system to hold the load securely when not in operation, and other mechanisms to ensure safe operation.
  • Maintenance: Regular maintenance is necessary to ensure the proper functioning and longevity of the steel wire rope manual operation system. This may include lubrication of wire ropes and moving parts, inspection of the rope for signs of wear or damage, and adjustment or replacement of components as needed.



NOTE: It is essential to consult the manufacturer's specifications and guidelines for the specific manual hoist chain operation system you are using, as the technical specifications may vary based on the design and intended use of the system.






Conclusion:



In conclusion, manual roller shutter doors are a practical and reliable option for various commercial and industrial applications. They offer several advantages, including:

  • Cost-effective: Manual roller shutter doors are generally more affordable than their motorized counterparts. They eliminate the need for electrical components and reduce installation and maintenance costs.
  • Easy operation: These doors are designed to be operated manually, using a handle or chain mechanism. They require minimal effort to lift and lower, making them user-friendly and convenient.
  • Durability: Manual roller shutter doors are typically constructed with high-quality materials such as steel, aluminum, or galvanized steel, ensuring their durability and resistance to wear and tear. They can withstand harsh weather conditions and provide long-lasting functionality.
  • Security: Manual roller shutter doors offer excellent security features. When closed, they provide a solid barrier against intruders and protect the premises from unauthorized access. They are often equipped with additional locking mechanisms for enhanced security.
  • Versatility: These doors are available in various sizes and styles to suit different applications and architectural designs. They can be customized to fit specific requirements, making them adaptable to a wide range of commercial and industrial settings.
  • Energy efficiency: Manual roller shutter doors contribute to energy efficiency by providing insulation and reducing heat transfer. They help maintain stable temperatures inside buildings, reducing heating or cooling costs.
  • Low maintenance: Manual roller shutter doors require minimal maintenance. Regular cleaning and lubrication of moving parts, such as tracks and rollers, is typically sufficient to keep them in good working condition.
  • Backup option: In the event of a power outage or motor failure, manual roller shutter doors can still be operated manually. This ensures uninterrupted access and security even during unforeseen circumstances.



Although manual roller shutter doors may not offer the convenience of motorized doors, they provide a cost-effective and reliable solution for many businesses. The suitability of manual roller shutter doors depends on factors such as budget, usage frequency, and specific needs. Consulting with a professional or supplier can help determine the best option for a particular application.






FAQ of Manual operation steel Rolling Shutter Doors



Q: What is the maximum size for a manual operation steel rolling shutter door?
A: The maximum size for a manual operation steel rolling shutter door depends on various factors such as the thickness and strength of the steel used, the design of the door, and the specifications of the manufacturer. It is recommended to consult with the supplier or manufacturer to determine the maximum size that can be accommodated for your specific requirements.



Q: Are manual operation steel rolling shutter doors weather-resistant?
A: Yes, manual operation steel rolling shutter doors are designed to be weather-resistant. The steel material used in their construction provides durability and resistance against harsh weather conditions such as rain, wind, and extreme temperatures. Additionally, manufacturers may use coatings or treatments to further enhance the weather resistance of the doors.



Q: How much effort is required to manually operate a steel rolling shutter door?
A: The effort required to manually operate a steel rolling shutter door depends on various factors such as the size and weight of the door, the design of the tracking system, and the mechanism used for lifting or lowering the door. Generally, smaller doors are easier to operate manually, while larger doors may require more effort. It is important to follow proper lifting techniques and avoid exerting excessive force to prevent injury or damage to the door.



Q: Can manual operation steel rolling shutter doors be installed in residential applications?
A: Yes, manual operation steel rolling shutter doors can be installed in residential applications. They are commonly used for garages, storage units, and other areas requiring security and protection. They provide an effective barrier against intruders and help to safeguard the property.Can manual operation steel rolling shutter doors be operated from both inside and outside the building?Yes, manual operation steel rolling shutter doors can be operated from both inside and outside the building. They are typically equipped with handles or chains that allow for easy operation from either side of the door. This provides flexibility and convenience for users.



Q: Are manual operation steel rolling shutter doors noisy during operation?
A: The noise level during operation of a manual operation steel rolling shutter door can vary depending on factors such as the quality of the door and the lubrication of its moving parts. Proper maintenance, including regular lubrication, can help reduce noise. Some doors may also be equipped with noise-reduction features to minimize sound levels.



Q: Can manual operation steel rolling shutter doors be painted or customized with logos or signs?
A: Yes, manual operation steel rolling shutter doors can be pre-painted or customized according to personal preferences or branding requirements. Most manufacturers offer a variety of color options by powder coating, anodized or

Q: Can manual operation steel rolling shutter doors be operated manually if the chain or handle breaks?

A: If the chain or handle of a manual operation steel rolling shutter door breaks, it may prevent normal operation. In such cases, it is recommended to contact a professional technician to repair or replace the broken component. It is important to avoid attempting to force open or close the door without proper functioning of the manual operation mechanism, as this can cause further damage or compromise the safety of the door.
