Security See Through Roll Up Doors Transparent Rolling Door Polycarbonate

See-Through Transparent Polycarbonate Shopping Rolling Shutter Doors / Commercial Security Transparent Roller Door

Basic Info

Overview

Transparent roll-up shutter doors provide a versatile and secure solution for businesses that require both visibility and security. With their durable construction, ease of operation, and customizable features, these doors enhance the aesthetics, functionality, and safety of commercial and residential spaces.

Maintenance is key to ensuring the longevity of any product, and Transparent polycarbonate roller shutter doors are designed with this in mind. With minimal maintenance requirements, these doors are built to withstand the test of time, making them a cost-effective investment in the long run. Additionally, their durable construction reduces the risk of wear and tear, ensuring that they remain in top condition for years to come.

"As clear as glass, as strong as steel" is the one sentence description for our transparent polycarbonate rolling shutters. It will be a perfect choice for the shop fronts, storefronts where need security as well as transparency.

Applications

• Retail spaces

• Residential properties

• Public buildings

• Hospitality industry

• Shopping mall

• Showroom

• Fashion shops

• Airport

• Banks

• Club bars

• And more

Key Features / Benefits

• Excellent Visibility
• Safety and Security
• Durability / Weather resistance
•  Flexibility
• UV protection
• Energy saving
• Sound insulation
• Advertising / display effect
• Environment-friendly
• Fire retardant and self-extinguishing
• Up to 12 meter width
• Easy to maintain

Drawings

1, Rubber weather seal

2, Aluminum bottom rail

3, Polycarbonate slats / links

4, Aluminum tubes / pipes

5, Plastic end caps / clips / cover

6, Aluminum guide rail

7, Brush strips

8, Solid galvanized steel slats

9, Steel end clips

10, Connecting slats

11, shaft / axle / barrel

12, bearing

13, left side plate / bracket

14, right side plate / bracket

15, side motor

16, push button

17, remote control

18, manual hoist chain

Technical specifications

Curtain:The polycarbonate rolling shutter itself consists of horizontal strips of virtually unbreakable crystal clear High-quality polycarbonate, inserted by stainless steel tubes, with plastic end clips/cover fixed on both sides to prevent the curtain from lateral movement.

♦ Dimension: 305*83mm,W*H

♦ Thickness: 3.6 mm

♦ Color: transparent

♦ About 30 pcs/ square meter

Bottom Rail: Extruded aluminum profiles, with rubber weather seal to stop the dust, rain, insects going inside.


Guide Rail: custom design extruded aluminum profiles, with brush strips to make the curtain runs more quietly and smoothly.

Shaft / Axle: made of galvanized steel instead of iron with painting, to make it good looking and prevent the shaft from getting rust. Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches, Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm.

Mullions: Removable center mullions are available on request for applications were shutter opening can not be covered by one shutter door.

Side plates / Brackets: The brackets are manufactured from mild steel and supplied in premed finish. The brackets can only be installed on a structural fixing surface such as concrete, steel columns, steel angles are normally used to supported the brackets if needed.With plates slotted to accommodate shaft or motor mounting.

Operation way:

• Manual operation: Spring box system, Torsion spring system, Hoist chain system, Wire rope system
• Automatic operation: Side motors, Tubular motors. The shutter doors could be open/close by remote controls, switch button, App, etc.

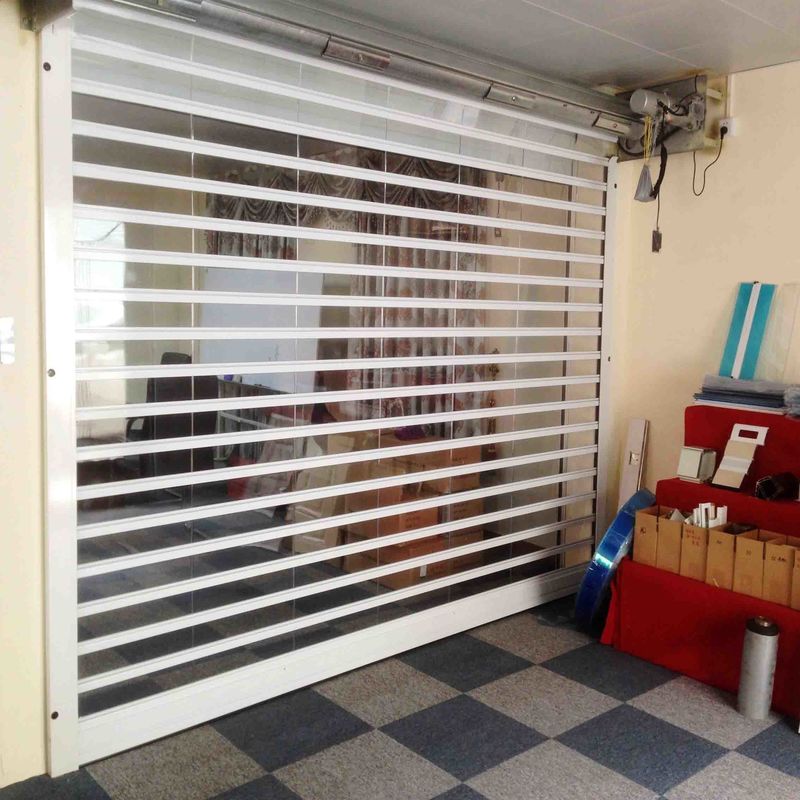

Project Photo Gallery

Design

♦ Wide range of colors and finishes to suit your aesthetic preferences

♦ Optional punched / colorful slats for ventilation or aesthetic design

♦ Can be integrated into various architectural styles

♦ Customizable sizes to fit specific openings and requirements

Our certificates

Conclusion:

In conclusion, the transparent polycarbonate roller shutter door is a state-of-the-art product that combines advanced security features with sleek aesthetics, convenience, and energy efficiency. With its versatile design options, ease of use, and low maintenance requirements, it offers an ideal solution for both residential and commercial spaces. Upgrade your security systems with the transparent polycarbonate roller shutter door and experience the future of protection and convenience.

FAQ of Transparent Polycarbonate Rolling Shutter Doors

Q: What is a transparent polycarbonate rolling shutter?
A: A transparent polycarbonate rolling shutter is a type of security door made of interlocking polycarbonate panels that roll up into a compact coil. These doors provide high visibility while offering security and protection from unauthorized access, vandalism, and environmental elements.

Q: What are the advantages of transparent polycarbonate rolling shutters?
A: Some advantages of transparent polycarbonate rolling shutters include:

• High visibility: They allow natural light to pass through, enhancing visibility and reducing the need for artificial lighting.
• Impact resistance: The polycarbonate panels used in these shutters are highly impact-resistant, making them difficult to break or damage.
• Weather resistance: They are designed to withstand various weather conditions, including UV radiation, corrosion, moisture, and chemicals.
• Thermal insulation: Transparent polycarbonate shutters offer good thermal insulation, helping to regulate temperature and reduce energy consumption.
• Customizability: These shutters can be customized in terms of size, color, and additional features to meet specific requirements.

Q: Are transparent polycarbonate rolling shutters secure?
A: Yes, transparent polycarbonate rolling shutters provide a high level of security. The polycarbonate panels used in their construction are impact-resistant and shatterproof, deterring unauthorized access and protecting against break-ins and vandalism. These shutters can also be fitted with additional security features, such as locking systems and access control.

Q: Can transparent polycarbonate rolling shutters be motorized?
A: Yes, transparent polycarbonate rolling shutters can be equipped with motorized systems for easy and convenient operation. With the push of a button or remote control, the shutters can be opened and closed smoothly. Motorization allows for quicker and more efficient access to the premises.

Q: How are transparent polycarbonate rolling shutters maintained?
A: Transparent polycarbonate rolling shutters are relatively low maintenance. The polycarbonate panels are easy to clean and can be wiped down with a mild detergent and water. Regular inspections for any damage or wear are recommended, and any necessary repairs should be carried out by a professional.

Q: Can transparent polycarbonate rolling shutters be installed in different locations?
A: Yes, transparent polycarbonate rolling shutters can be installed in various locations, including commercial buildings, industrial facilities, retail spaces, hospitality venues, and residential properties. They are versatile and can be customized to fit different sizes and architectural styles.

These are just a few frequently asked questions about transparent polycarbonate rolling shutters. If you have more specific queries or require additional information, feel free to ask.
