80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80
80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80
80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80

80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: 52.5

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

80mm aluminum roller shutter door

,

double layer extruded aluminum shutter

,

SA80 rolling shutter door

Model NO.:
SA80
Material:
Aluminum Alloy
Type:
Rolling
Open Style:
Rolling
Opening Type:
With Remote Control
Slat Width:
80mm
Slat Thickness:
1.2mm
Guide Rail Size:
80*36mm Or 90*36mm
Motor Voltage:
220V/50Hz, 380V/50Hz, 110V/60Hz, 230V/50Hz, 120V/60Hz
Motor Capacity:
400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG, 60N, 80N, 120N, 140N, 230N, 300N
Shaft Diameter:
3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Surface Finishing:
Finished
Standard Colors:
White, Beige
Guide Rail Material:
Heavy Duty Extruded Aluminum
Bottom Rail Material:
Extruded Aluminum
Model NO.:
SA80
Material:
Aluminum Alloy
Type:
Rolling
Open Style:
Rolling
Opening Type:
With Remote Control
Slat Width:
80mm
Slat Thickness:
1.2mm
Guide Rail Size:
80*36mm Or 90*36mm
Motor Voltage:
220V/50Hz, 380V/50Hz, 110V/60Hz, 230V/50Hz, 120V/60Hz
Motor Capacity:
400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG, 60N, 80N, 120N, 140N, 230N, 300N
Shaft Diameter:
3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Surface Finishing:
Finished
Standard Colors:
White, Beige
Guide Rail Material:
Heavy Duty Extruded Aluminum
Bottom Rail Material:
Extruded Aluminum
Description

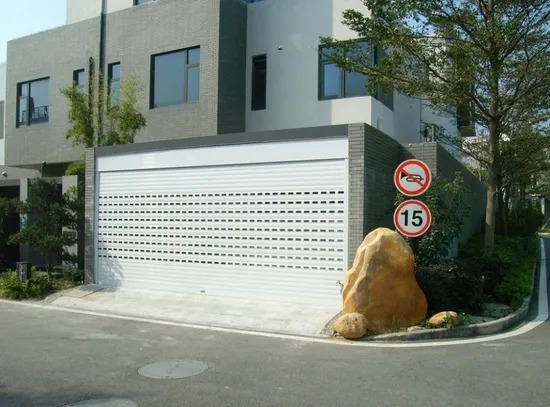

80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80
Double Layer Extruded Aluminum Rolling Shutter
Product Specifications
Attribute Value
Model NO. SA80
Material Aluminum Alloy
Type Rolling
Open Style Rolling
Opening Type With Remote Control
Special Function Security
Color as Request
Position Industrial
Surface Finishing Finished
Transport Package Carton/ Wooden Box
Specification 80mm
Trademark STARKING
Origin China
HS Code 761010
Production Capacity 5000 Square Meters/ Month
Product Description

Aluminum Roller Shutter Door - Model HA80 is the ideal security solution for:

  • Commercial shops
  • Factories
  • Warehouses
  • Residential garages
  • Club bars
80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80 0 80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80 1 80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80 2 80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80 3
Key Features
  • Safety and security protection
  • Theftproof design
  • Heat insulation properties
  • Weather resistant construction
  • Rustproof aluminum alloy
  • Sound insulation capabilities
Motorized Operation Polycarbonate Rolling Shutter Door
80mm Double Layer Extruded Aluminum Rolling Shutter Door SA80 4
Technical Specifications
1. Aluminum Slat (HA80): Double skinned, Width: 80mm, Thickness: 1.2mm, Standard colors: white, beige (custom RAL colors available)
2. Bottom Rail: Made of extruded aluminum
3. Guide Rail: Heavy duty extruded aluminum "U" guide rail (80*36mm or 90*36mm) with brush strip for quiet operation
4. Switch Button: Stainless steel cover box
5. Endless Chain: Manual operation option during power outage
6. Motor Options: HOFUL brand side motor (CE certified, various capacities) or DOOYA tubular motor (CE certified, various torque options)
7. Shutter Box: Galvanized steel or aluminum (optional)
8. Shaft: Galvanized steel, various diameters (3"-10") depending on shutter size
9. Bearing: Retractable, welded according to shutter width
10. End Plate: Heavy duty steel, fixed on shaft sides
11. End Clip: Plastic, prevents lateral curtain movement

Manual operation aluminum roller shutter is available upon request.

Contact us today for more details about our Double Layer Extruded Aluminum Rolling Shutter solutions.
