HA80 Aluminum Roller Shutter Door 80mm Slat with Remote Control

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 1,300

Price: 2.7

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          HA80 aluminum roller shutter door, 80mm slat roller shutter door, remote control roller shutter door


Model NO.:	HA80	Open Style:	Rolling
Opening Type:	With Remote Control	Max Length:	10m
Standard Length:	6.9m	Max Door Size:	8000mm*6000mm
Slat Width:	80mm	Slat Thickness:	1.2mm
Guide Rail Dimensions:	85*38.5mm	Guide Rail Thickness:	2.5mm
Motor Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz	Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N	Manual Shaft Diameter:	2 Inches
Production Capacity:	5000 Square Meters/ Month

Model NO.:	HA80
Open Style:	Rolling
Opening Type:	With Remote Control
Max Length:	10m
Standard Length:	6.9m
Max Door Size:	8000mm*6000mm
Slat Width:	80mm
Slat Thickness:	1.2mm
Guide Rail Dimensions:	85*38.5mm
Guide Rail Thickness:	2.5mm
Motor Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz
Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N
Manual Shaft Diameter:	2 Inches
Production Capacity:	5000 Square Meters/ Month

Description

HA80 Aluminum Roller Shutter Door 80mm Slat with Remote Control

Extruded Aluminum Roller Shutter, Aluminum Rolling Shutter Door

Product Specifications

Attribute	Value
Model NO.	HA80
Open Style	Rolling
Opening Type	With Remote Control
Special Function	Security
Color	Any Ral Color
Position	Exterior
Surface Finishing	Finished
Max Length	10m
Standard Length	6.9m
Max Door Size	8000mm*6000mm
Transport Package	as Request
Specification	80mm
Trademark	HOFUL
Origin	Made in China
HS Code	761010
Production Capacity	5000 Square Meters/ Month

Product Overview

The HA80 Aluminum Roller Shutter Door is an ideal security solution for various applications including:

Commercial shops
Factories and warehouses
Residential garages
Club bars and entertainment venues

Key Features

Enhanced safety and security
Theftproof design
Excellent heat insulation
Weather resistant construction
Rustproof aluminum materials
Effective sound insulation

Motorized Operation Specifications

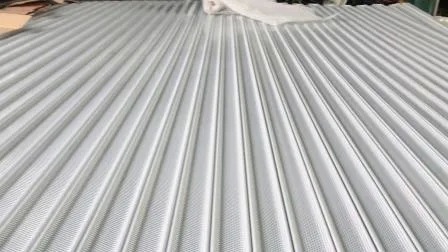

Slat: 80mm width, 1.2mm thickness, available in white, beige or custom colors
Bottom Rail: Made of extruded aluminum
Guide Rail: Heavy duty extruded aluminum "U" guide rail (85*38.5mm) with 2.5mm thickness and brush strip for quiet operation
Switch Button: Stainless steel cover box
Emergency Chain: Manual operation option when power is off
Motor Options: HOFUL brand side motor (400KG-2000KG) or DOOYA tubular motor (60N-300N) with various voltage options
Shutter Box: Optional galvanized steel or aluminum construction
Shaft: Galvanized steel available in 3-10 inch diameters
Bearing: Retractable design, welded for stability
End Plate: Heavy duty steel construction
End Clip: Plastic protection against lateral movement

Manual Operation Specifications

Slat: 80mm width, 1.2mm thickness, available in white, beige or custom colors
Lock System: Lock bar extends to guide rails on both sides
Bottom Rail: Made of extruded aluminum
Guide Rail: Heavy duty extruded aluminum "U" guide rail (85*38.5mm) with 2.5mm thickness and brush strip
Hanging Slat: Included for manual operation
Shutter Box: Optional galvanized steel or aluminum construction
Shaft: 2 inch galvanized steel
Helical Spring: For manual operation mechanism
End Plate: Heavy duty steel construction
End Clip: Plastic protection against lateral movement
