HA80 Industrial Aluminum Rolling Shutter Door 80mm with Remote Control

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 50

Price: 52.5

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          industrial aluminum rolling shutter door, 80mm roller shutter door with remote, aluminum rolling shutter door with warranty


Model NO.:	HA80	Open Style:	Rolling
Opening Type:	With Remote Control	Slat Width:	80mm
Slat Thickness:	1.0mm, 1.2mm	Guide Rail Size:	8036mm Or 9036mm
Motor Type:	HOFUL Side Motor Or DOOYA Tubular Motor	Motor Capacity:	400KG-2000KG (HOFUL), 60N-300N (DOOYA)
Rated Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz (HOFUL), 230V/50Hz, 120V/60Hz (DOOYA)	Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Bottom Rail Material:	Extruded Aluminum	Guide Rail Material:	Heavy Duty Extruded Aluminum
Shutter Box Material:	Galvanized Steel Or Aluminum	End Plate Material:	Heavy Duty Steel
End Clip Material:	Plastic

Model NO.:	HA80
Open Style:	Rolling
Opening Type:	With Remote Control
Slat Width:	80mm
Slat Thickness:	1.0mm, 1.2mm
Guide Rail Size:	8036mm Or 9036mm
Motor Type:	HOFUL Side Motor Or DOOYA Tubular Motor
Motor Capacity:	400KG-2000KG (HOFUL), 60N-300N (DOOYA)
Rated Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz (HOFUL), 230V/50Hz, 120V/60Hz (DOOYA)
Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Bottom Rail Material:	Extruded Aluminum
Guide Rail Material:	Heavy Duty Extruded Aluminum
Shutter Box Material:	Galvanized Steel Or Aluminum
End Plate Material:	Heavy Duty Steel
End Clip Material:	Plastic

Description

HA80 Industrial Aluminum Rolling Shutter Door 80mm with Remote Control

Industrial Aluminum Rolling Shutter Door Factory/Manufacturer

Product Specifications

Attribute	Value
Model NO.	HA80
Open Style	Rolling
Opening Type	With Remote Control
Special Function	Security
Color	Any RAL Color
Position	Industrial
Surface Finishing	Finished
Transport Package	As Request
Specification	80mm
Trademark	HOFUL
Origin	Made in China
HS Code	761010
Production Capacity	5000 Square Meters/Month

HA80 Aluminum Roller Shutter Door

Ideal solution for various applications including:

Commercial shops
Factories
Warehouses
Residential garages
Club bars

Key Features

Safety and security
Theftproof design
Heat insulation
Weather resistant
Rustproof construction
Sound insulation

Motorized Operation Polycarbonate Rolling Shutter Door

Detailed Specifications

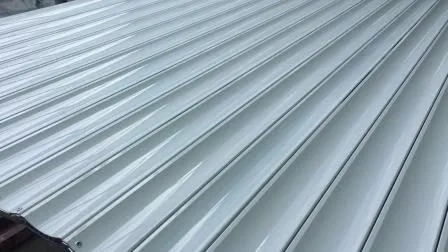

1. Double Layer Aluminum Slat (HA80)

Width: 80mm
Thickness: 1.0mm, 1.2mm
Standard Colors: White, Beige (Other RAL colors available)

2. Aluminum Bottom Rail

Made of extruded aluminum

3. Aluminum Guide Rail

Heavy duty extruded aluminum "U" guide rail
80*36mm or 90*36mm (Width*Depth*Thickness)
Includes brush strip for quiet operation

4. Switch Button

Stainless steel cover box for operating rolling shutter

5. Endless Chain

Manual operation option when power is off

6. Rolling Shutter Motor Options

Option 1: HOFUL brand side motor (CE certified) with capacities from 400KG to 2000KG
Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor (CE certified) with torque from 60N to 300N
Voltage/Frequency: 230V/50Hz, 120V/60Hz

7. Shutter Box (Hood)

Optional galvanized steel or aluminum construction

8. Shaft (Barrel)

Galvanized steel, available in 3", 5", 6", 8", or 10" diameters (size dependent on shutter dimensions)

9. Bearing

Retractable design, welded according to shutter width

10. End Plate

Heavy duty steel, fixed on both sides of the shaft

11. End Clip

Plastic construction to prevent lateral movement of aluminum slats

Manual operation aluminum roller shutter is available upon request.
