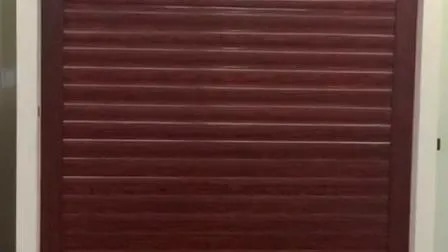

HA80 Aluminum Roller Shutter Door 10000mm Height Remote Control

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: 54.5

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          aluminum roller shutter door with remote control, HA80 roller shutter door 10000mm height, remote control aluminum roller shutter door


Model NO.:	HA80	Open Style:	Rolling
Opening Type:	With Remote Control	Max Height:	10000mm
Max Length:	7500mm	Slat Width:	80mm
Slat Thickness:	1.0mm, 1.2mm	Guide Rail Size:	8036mm Or 9036mm
Motor Capacity:	400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG	Motor Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz
Tubular Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N	Tubular Motor Voltage:	230V/50Hz, 120V/60Hz
Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches	Surface Finishing:	Finished
Color:	Wood Grain

Model NO.:	HA80
Open Style:	Rolling
Opening Type:	With Remote Control
Max Height:	10000mm
Max Length:	7500mm
Slat Width:	80mm
Slat Thickness:	1.0mm, 1.2mm
Guide Rail Size:	8036mm Or 9036mm
Motor Capacity:	400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG
Motor Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz
Tubular Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N
Tubular Motor Voltage:	230V/50Hz, 120V/60Hz
Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Surface Finishing:	Finished
Color:	Wood Grain

Description

HA80 Aluminum Roller Shutter Door 10000mm Height Remote Control

Residential Roller Garage Door Aluminum Roll up Door Automatic Door

Product Specifications

Attribute	Value
Model NO.	HA80
Open Style	Rolling
Opening Type	With Remote Control
Special Function	Security
Color	Wood Grain
Position	Industrial
Surface Finishing	Finished
Max Height	10000mm
Max Length	7500mm
Transport Package	Carton or Wooden Box
Specification	CE
Trademark	Hoful
Origin	China
HS Code	761010
Production Capacity	3000 Square Meters/Month

Product Description

The HA80 Aluminum Roller Shutter Door is an ideal security solution for various applications including:

Commercial shops
Factories
Warehouses
Residential garages
Club bars

Key Features

Safety and security protection
Theftproof design
Heat insulation properties
Weather resistant construction
Rustproof materials
Sound insulation capabilities

Technical Specifications

1. Double Skinned Aluminum Slat (HA80): Width: 80mm | Thickness: 1.0mm, 1.2mm | Color: wood grain, wood color

2. Aluminum Bottom Rail: Made of extruded aluminum

3. Aluminum Guide Rail: Heavy duty extruded aluminum "U" guide rail (80*36mm or 90*36mm) with brush strip for quiet operation

4. Switch Button: Stainless steel cover box

5. Endless Chain: Manual operation option during power outage

6. Rolling Shutter Motor Options:

HOFUL brand side motor (CE certified) with various load capacities (400KG-2000KG)
DOOYA tubular motor (CE certified) with torque options from 60N to 300N
Multiple voltage/frequency configurations available

7. Shutter Box: Galvanized steel or aluminum option

8. Shaft: Galvanized steel in various diameters (3-10 inches)

9. Bearing: Retractable, welded according to shutter width

10. End Plate: Heavy duty steel, fixed on shaft sides

11. End Clip: Plastic protection against lateral movement

Manual operation aluminum roller shutter is available upon request.
