HA55 Aluminum Roller Shutter Door 55mm with Remote Control

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: 58.5

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          55mm aluminum roller shutter door, remote control roller shutter door, aluminum shutter door with warranty


Model NO.:	HA55	Open Style:	Rolling
Opening Type:	With Remote Control	Slat Width:	55mm
Slat Thickness:	1.0mm	Bottom Rail Material:	Extruded Aluminum
Guide Rail Material:	Heavy Duty Extruded Aluminum	Motor Type:	DOOYA Tubular Motor
Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N	Motor Voltage:	230V/50Hz, 120V/60Hz
Shutter Box Material:	Aluminum	Shaft Material:	Galvanized Steel Octagonal Tube
End Plate Material:	Heavy Duty Steel	End Clip Material:	Plastic
Production Capacity:	5000 Square Meters/ Month

Model NO.:	HA55
Open Style:	Rolling
Opening Type:	With Remote Control
Slat Width:	55mm
Slat Thickness:	1.0mm
Bottom Rail Material:	Extruded Aluminum
Guide Rail Material:	Heavy Duty Extruded Aluminum
Motor Type:	DOOYA Tubular Motor
Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N
Motor Voltage:	230V/50Hz, 120V/60Hz
Shutter Box Material:	Aluminum
Shaft Material:	Galvanized Steel Octagonal Tube
End Plate Material:	Heavy Duty Steel
End Clip Material:	Plastic
Production Capacity:	5000 Square Meters/ Month

Description

HA55 Aluminum Roller Shutter Door 55mm with Remote Control

Aluminum Roller Shutter Door / Aluminum Alloy Rolling Shutters

Product Specifications

Attribute	Value
Model NO.	HA55
Open Style	Rolling
Opening Type	With Remote Control
Special Function	Security
Color	as Request
Position	Exterior
Surface Finishing	Finished
Transport Package	Carton or Wooden Box
Specification	55mm
Trademark	HOFUL
Origin	China
HS Code	761010
Production Capacity	5000 Square Meters/ Month

Product Description

Aluminum window shutter - Model HA55 is an ideal solution for various applications including:

Residential window openings
Warehouses
Residential garages

Key Features

Safety and security
Burglar proof
Heat insulation
Weather resistant
Rustproof
Sound insulation
Energy saving

Technical Specifications

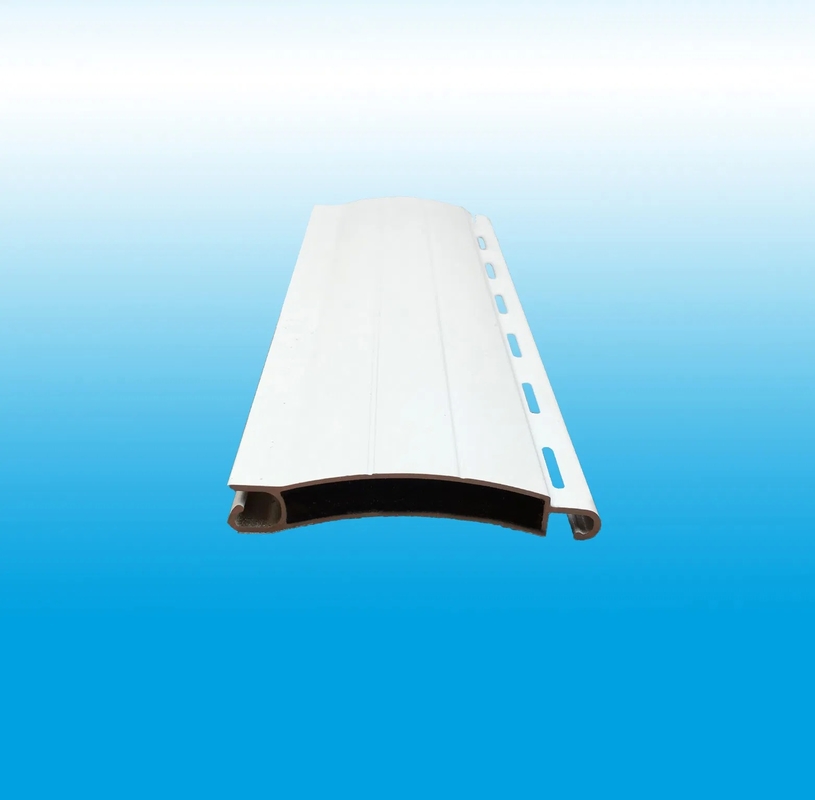

Double skinned aluminum Slat (HA55): Width: 55mm, Thickness: 1.0mm. Standard colors: white, beige. Other RAL colors available upon request.

Aluminum bottom rail: Made of extruded aluminum.

Aluminum Guide Rail: Heavy duty extruded aluminum "U" guide rail with brush strip for quiet operation.

Switch button: Stainless steel cover box for operating the rolling shutter.

Manual crank: Endless chain operation available during power outages.

Rolling shutter motor: DOOYA tubular motor with CE certification. Various torque options available (60N, 80N, 120N, 140N, 230N, 300N). Voltage/Frequency options: 230V/50Hz or 120V/60Hz.

Shutter box (hood): Made of aluminum.

Shaft (barrel): Made of galvanized steel octagonal tube.

Bearing: Included for smooth operation.

End plate: Heavy duty steel, fixed on both sides of the shaft.

End clip: Plastic component to protect the curtain from lateral movement.

Manual operation aluminum roller shutters are also available upon request.
