HA80 Aluminum Roller Shutter Door 80mm with Remote Control

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 50

Price: 52.5

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          aluminum roller shutter door 80mm, remote control roller shutter door, HA80 aluminum shutter with warranty


Model NO.:	HA80	Open Style:	Rolling
Opening Type:	With Remote Control	Max Length:	10m
Profile Width:	80mm	Profile Thickness:	1.0mm, 1.2mm
Guide Rail Size:	8036mm Or 9036mm	Motor Capacity:	400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG
Motor Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz	Tubular Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N
Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches	Production Capacity:	5000 Square Meters/ Month
Surface Finishing:	Finished	Material:	Aluminum
Color Options:	Any RAL Color

Model NO.:	HA80
Open Style:	Rolling
Opening Type:	With Remote Control
Max Length:	10m
Profile Width:	80mm
Profile Thickness:	1.0mm, 1.2mm
Guide Rail Size:	8036mm Or 9036mm
Motor Capacity:	400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG
Motor Voltage:	220V/50Hz, 380V/50Hz, 110V/60Hz
Tubular Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N
Shaft Diameter:	3 Inches, 5 Inches, 6 Inches, 8 Inches, 10 Inches
Production Capacity:	5000 Square Meters/ Month
Surface Finishing:	Finished
Material:	Aluminum
Color Options:	Any RAL Color

Description

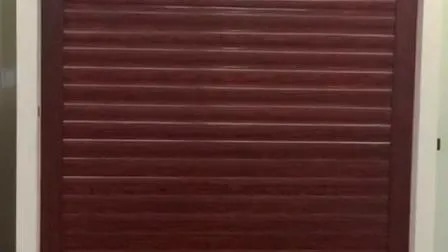

HA80 Aluminum Roller Shutter Door 80mm with Remote Control

Aluminium Profile for Roller Shutter Solid Garage Door

Product Specifications

Attribute	Value
Model NO.	HA80
Open Style	Rolling
Opening Type	With Remote Control
Special Function	Security
Color	Any Ral Color
Position	Industrial
Surface Finishing	Finished
Max Length	10m
Transport Package	as Request
Specification	80mm
Trademark	HOFUL
Origin	Made in China
HS Code	761010
Production Capacity	5000 Square Meters/ Month

Product Overview

The HA80 Aluminum Roller Shutter Door provides an ideal security solution for various applications including commercial shops, factories, warehouses, residential garages, and club bars.

Key Features

Enhanced safety and security
Theftproof design
Excellent heat insulation
Weather resistant construction
Rustproof aluminum material
Effective sound insulation

Technical Specifications

Double Skinned Aluminum Slat (HA80)

Width: 80mm
Thickness: 1.0mm, 1.2mm
Standard Colors: white, beige (Other RAL colors available)

Additional Components

Aluminum bottom rail - extruded aluminum construction
Aluminum Guide Rail - heavy duty extruded aluminum "U" guide rail (80*36mm or 90*36mm) with brush strip for quiet operation
Switch button with stainless steel cover box
Endless chain for manual operation during power outages

Motor Options

HOFUL Brand Side Motor: CE certified, available in 400KG-2000KG capacities, with voltage/frequency options of 220V/50Hz, 380V/50Hz, or 110V/60Hz
DOOYA Tubular Motor: CE certified, available in 60N-300N capacities, with voltage/frequency options of 230V/50Hz or 120V/60Hz

Additional Components

Shutter box (hood) - available in galvanized steel or aluminum
Shaft (barrel) - galvanized steel, available in 3-10 inch diameters based on shutter size
Retractable bearing system
Heavy duty steel end plates
Plastic end clips to prevent lateral movement
