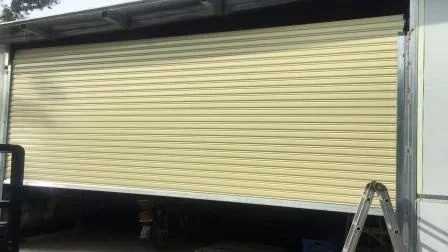

Fire Rated Fireproof and Heat Insulated Galvanised Steel Rolling Shutter Door
Product Overview
A high-performance steel roller shutter door designed for commercial and industrial applications, offering fireproof protection, heat insulation, and enhanced security.
Basic Specifications
| Material | Galvanized steel |
| Position | Industry, warehouse, commercial shop |
| MOQ | 1 set |
| Certification | CCC, ISO, CE |
| Origin | Guangzhou, China |
| Color | Original color or other RAL colors |
| Sample | Available |
Product Description
Constructed with horizontal steel slats hinged together, this rolling shutter door operates smoothly along tracks either manually (via chain or crank) or with motorized automation for convenience.
Applications
- Commercial shops
- Factories
- Warehouses
- Residential garages
- Club bars
Key Features
- Safety and security protection
- Theftproof design
- Heat insulation
- Weather resistant
- Rustproof construction
- Sound insulation
Technical Specifications
1. Slat
| Width | 65mm |
| Thickness | 1.2mm |
| Color | White, beige, custom-made colors |
2. Aluminum Bottom Rail
Made of extruded aluminum for durability and smooth operation.
3. Aluminum Guide Rail
Heavy duty extruded aluminum "U" guide rail (80*36mm or 90*36mm) with brush strip for quiet operation.
4. Switch Button
Stainless steel cover box for operating the rolling shutter.
5. Endless Chain
Manual operation option when power is unavailable.
6. Rolling Shutter Motor Options
Option 1: HOFUL brand side motor (CE certified) with capacities from 400KG to 2000KG. Voltage options: 220V/50Hz, 380V/50Hz, 110V/60Hz.
Option 2: DOOYA tubular motor (CE certified) with torque options from 60N to 300N. Voltage options: 230V/50Hz, 120V/60Hz.
7. Shutter Box (Hood)
Available in galvanized steel or aluminum.
8. Shaft (Barrel)
Galvanized steel, available in 3, 5, 6, 8, or 10 inches depending on door size.
9. Bearing
Retractable design, welded according to shutter width.
10. End Plate
Heavy duty steel, fixed on both sides of the shaft.
11. End Clip
Plastic construction to protect the curtain from lateral movement.
Technical Drawings
Certifications
Frequently Asked Questions
What are your main steel door products?
Our main steel door products are insulated sectional garage doors and industrial doors. We offer various materials including polyurethane sandwich panel, aluminum profile with tempered glass, solid wood, aluminum sheet, laser cut design, and other new materials.
What is the delivery time?
20 days for standard colors and 30 days for customized options. Delivery time may vary based on specifications and order quantity. Final shipment time depends on customer location.
What is your payment terms?
Standard terms are 30% deposit by T/T with balance paid before delivery. Alternative arrangements can be discussed upon request.
Can we place one or two sets for trial?
Yes, we encourage trial orders for quality verification. We also offer free small samples (customer covers freight) as a demonstration of our product quality and business sincerity.
How can I know the price exactly?
Prices are customized based on specifications. Please provide details including color, size, quantity, market location, and sales patterns for an accurate quotation.
Can I order components instead of the full set of door?
Yes, we welcome orders for individual components such as panels, hardware, or motors to meet specific business needs.
