Aluminum Rolling Shutter Door/ Roller Shutter Door/ Garage Door

Product Details

Certification: CCC, ISO9001, CE

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: 52.5

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      aluminum rolling shutter garage door, roller shutter door with warranty, aluminum roller door for garage


Model NO.:	HA80+HA80-2	Open Style:	Rolling
Opening Type:	With Remote Control	Special Function:	Security
Color:	As Request	Position:	Exterior
Surface Finishing:	Finished	Max Height:	10000mm
Transport Package:	Carton Or Wooden Box	Specification:	55mm
Trademark:	HOFUL	Origin:	China
HS Code:	761010	Production Capacity:	5000 Square Meters/ Month

Model NO.:	HA80+HA80-2
Open Style:	Rolling
Opening Type:	With Remote Control
Special Function:	Security
Color:	As Request
Position:	Exterior
Surface Finishing:	Finished
Max Height:	10000mm
Transport Package:	Carton Or Wooden Box
Specification:	55mm
Trademark:	HOFUL
Origin:	China
HS Code:	761010
Production Capacity:	5000 Square Meters/ Month

Description

Aluminum Rolling Shutter Door/ Roller Shutter Door/ Garage Door

Aluminum Rolling Shutter Door / Roller Shutter Door / Garage Door

Product Overview

Aluminum Roller Shutter Door - Model HA80+HA80-2

An ideal security solution for various applications including residential garages, commercial shops, factories, warehouses, and more.

Key Features & Benefits

Enhanced safety and security protection
Theftproof design for maximum protection
Excellent heat insulation properties
Weather resistant construction
Rustproof aluminum materials
Effective sound insulation

Technical Specifications

Component	Specifications

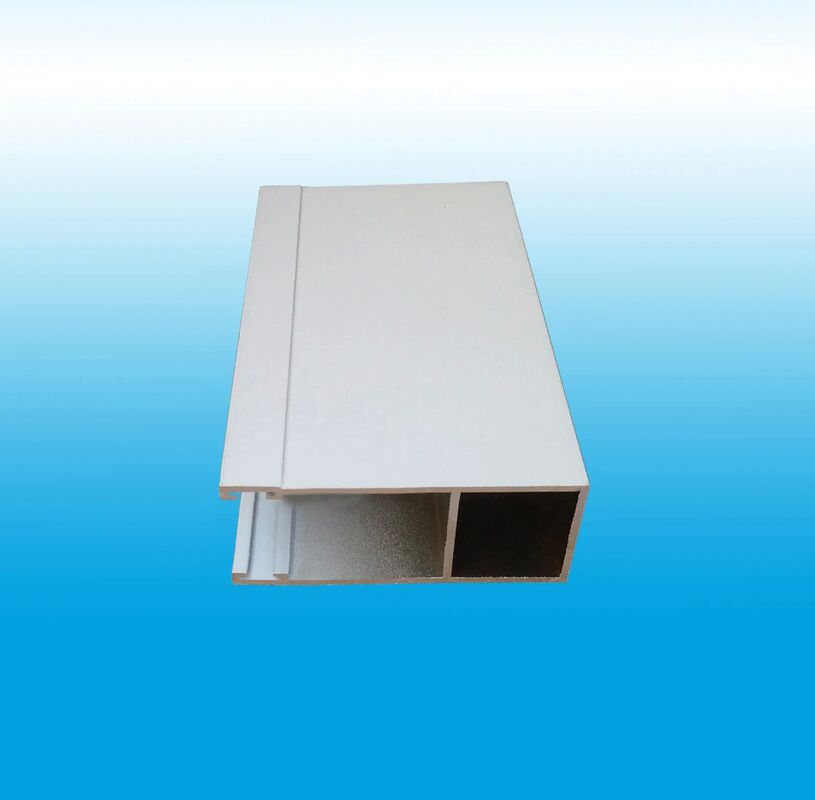

Aluminum Slats	Double layer (HA80) + Single layer (HA80-2) Width: 80mm Thickness: 1.0mm, 1.2mm Standard Colors: White, Beige Custom RAL colors available
Bottom Rail	Made of extruded aluminum
Guide Rail	Heavy duty extruded aluminum "U" guide rail 8036mm or 9036mm (WidthDepthThickness) Includes brush strip for quiet operation
Switch Button	Stainless steel cover box for operating rolling shutter
Endless Chain	Manual operation capability during power outages
Rolling Shutter Motor	Option 1: HOFUL brand side motor (CE certified) Capacities: 400KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz Option 2: DOOYA tubular motor (CE certified) Torque: 60N, 80N, 120N, 140N, 230N, 300N Voltage/Frequency: 230V/50Hz, 120V/60Hz
Shutter Box (Hood)	Galvanized steel or aluminum (optional)
Shaft (Barrel)	Galvanized steel Sizes: 3", 5", 6", 8", 10" (depending on shutter size)
Bearing	Retractable design, welded according to shutter width
End Plate	Heavy duty steel, fixed on both sides of the shaft
End Clip	Plastic construction, prevents curtain lateral movement
