Aluminum Alloy Coiling Door Features
The aluminum construction of these roller shutter doors provides excellent insulation benefits. With their ability to effectively regulate temperature, they help reduce energy consumption and maintain comfortable indoor environments. This results in savings on heating and cooling costs while contributing to a more sustainable future.
Detailed Component Specifications

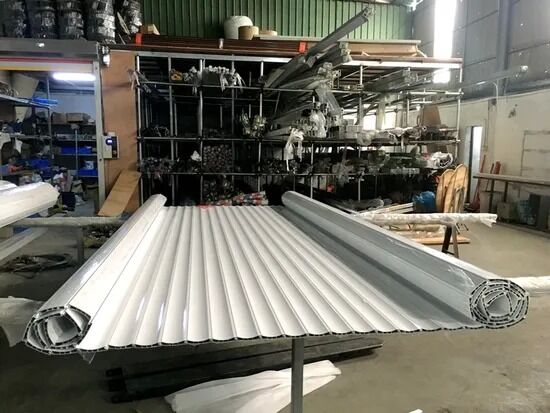

1. Slat
Width: 65mm
Thickness: 1.2mm
Color: white, beige, custom-made colors available
2. Aluminum Bottom Rail
Material: Extruded aluminum
3. Aluminum Guide Rail
Material: Heavy duty extruded aluminum "U" guide rail
Size: 80*36mm or 90*36mm (Width*Depth*Thickness)
Includes brush strip for quiet operation
4. Switch Button
Switch button for operating rolling shutter with stainless steel cover box
5. Endless Chain
Manual operation capability during power outages
6. Rolling Shutter Motor Options
Option 1: HOFUL Brand Side Motor
CE certified, capacities: 400KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG
Rated voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA Tubular Motor
CE certified, capacities: 60N, 80N, 120N, 140N, 230N, 300N
Rated voltage/Frequency: 230V/50Hz, 120V/60Hz
7. Shutter Box (Hood)
Material: Galvanized steel or aluminum (optional)
8. Shaft (Barrel)
Material: Galvanized steel
Sizes: 3 inches, 5 inches, 6 inches, 8 inches, 10 inches (size depends on rolling shutter dimensions)
9. Bearing
Retractable design, welded according to rolling shutter width
10. End Plate
Material: Heavy duty steel, fixed on both sides of the shaft
11. End Clip
Material: Plastic, fixed on both sides of stainless steel tube to protect curtain from lateral movement
