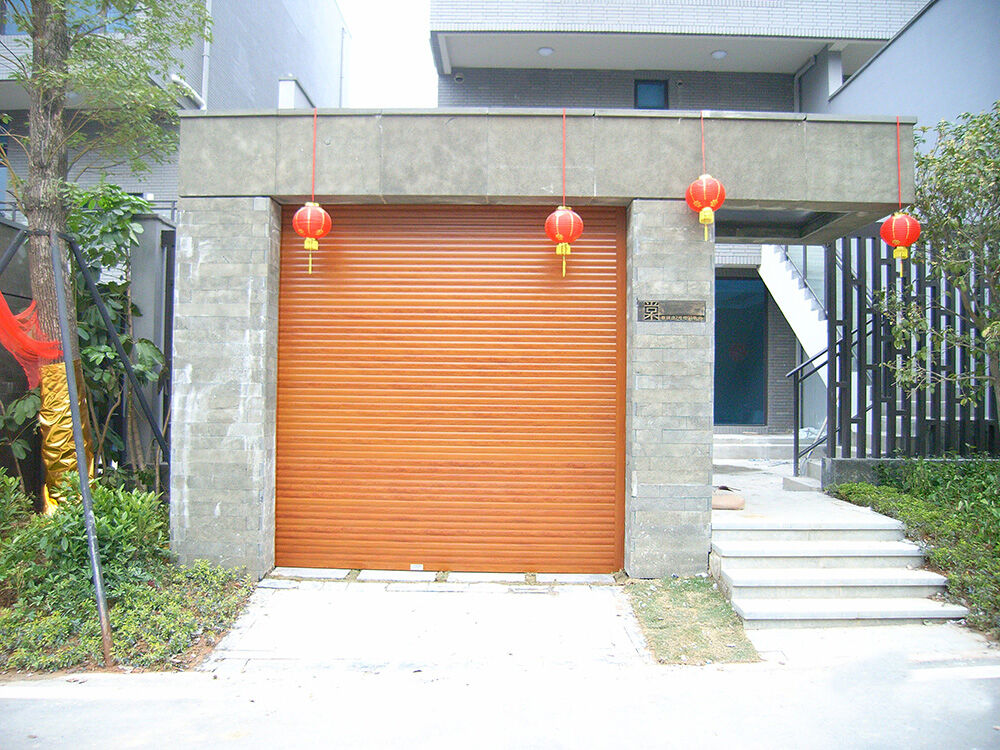

Aluminium Alloy Rolling/Roller Shutter Door
A premium aluminum alloy rolling shutter door designed for superior security, durability, and performance in various commercial and residential applications.
Ideal Applications
- Commercial shops and retail stores
- Industrial factories and warehouses
- Residential garages and homes
- Club bars and entertainment venues
- Office buildings and commercial complexes
Key Functions
- Enhanced safety and security protection
- Theft-proof construction
- Effective heat insulation
- Weather resistant design
- Rustproof aluminum alloy material
- Sound insulation properties
Technical Specifications
Door Components
Slat: 65mm width, 1.2mm thickness. Available in white, beige, or custom colors.
Aluminum Bottom Rail: Constructed from extruded aluminum for durability.
Aluminum Guide Rail: Heavy-duty extruded aluminum "U" guide rail, 80×36mm or 90×36mm. Features brush strips for quiet operation.
Switch Button: Operational switch with stainless steel cover box.
Endless Chain: Manual operation capability during power outages.
Motor Options
Option 1 - HOFUL Side Motor: CE certified, capacities from 400KG to 2000KG. Voltage options: 220V/50Hz, 380V/50Hz, 110V/60Hz.
Option 2 - DOOYA Tubular Motor: CE certified, torque options: 60N to 300N. Voltage options: 230V/50Hz, 120V/60Hz.
Structural Components
Shutter Box (Hood): Available in galvanized steel or aluminum construction.
Shaft (Barrel): Galvanized steel, sizes from 3 to 10 inches based on door dimensions.
Bearing: Retractable design, welded according to shutter width requirements.
End Plate: Heavy-duty steel construction, mounted on both shaft sides.
End Clip: Plastic components protecting curtain from lateral movement.
Product Overview
Our Aluminum Roller Shutter Door is a high-quality, robust security solution designed for both residential and commercial applications. Crafted from premium-grade aluminum slats, this door offers exceptional durability, weather resistance, and enhanced protection against intrusions.
Key Features
Premium Aluminum Construction
Lightweight yet strong, resistant to rust, corrosion, and extreme weather conditions.
Enhanced Security
Interlocking slats and sturdy locking mechanisms deter break-ins and unauthorized access.
Smooth & Quiet Operation
High-performance rolling mechanisms with manual or motorized options available.
Thermal & Noise Insulation
Improves energy efficiency by reducing heat transfer and external noise.
Space-Saving Design
Rolls up compactly, ideal for areas with limited space.
Customizable Options
Available in various sizes, colors, and finishes to match your property's aesthetics.
Technical Specifications
| Material |
High-strength aluminum slats |
| Thickness |
0.8mm - 1.2mm (customizable) |
| Operation |
Manual crank / Electric motor (optional) |
| Finish |
Powder-coated (multiple color options) |
Why Choose Our Aluminum Roller Shutter Door?
- Long-lasting performance with minimal wear and tear
- Superior security compared to traditional doors
- Weatherproof construction withstands rain, wind, and UV exposure
- Aesthetic appeal with sleek, modern design
- Easy installation with professional support available
