Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation

Product Details

Place of Origin: China

Brand Name: Starking

Certification: ISO CNAS

Model Number: SGF80

Payment & Shipping Terms

Minimum Order Quantity: 10 square meter

Price: usd45 to usd75 per square meter

Packaging Details: carton/wooden box

Delivery Time: 30 days

Payment Terms: TT

Supply Ability: 5000 square meter per day

Get Best Price
Contact Now
Specifications
Highlight:

Warehouses Fire Rated Rolling Shutter Door

,

Shopfronts Fire Rated Rolling Shutter Door

,

ISO Fire Roller Shutter Doors

Description
Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation

Fire-rated rolling shutter doors with rockwool insulation


PRODUCT DESCRIPTION

We export a very wide range of steel rolling shutter doors for the industrial places where the opening often require high security and sometimes in very large sizes. Fire rated roller shutters are made of steel and are similar to regular steel roller shutter doors.They are usually used as part of an overall fire strategy to prevent fires from spreading too fast in buildings.



Fire rated shutters are equipped with a thermal fusible link mechanism which causes the shutters to lower on their own once a certain temperature is reached. The descend happens when the brakes of the motor are released.They are sometimes linked to the building's security system and can also be activated once the fire alarm goes off.In the event of a fire, the lowering of the shutters helps to create a compartment within the building to prevent the fire from spreading too quickly so as to enable everyone in the building to escape in time.



They are designed to withstand fires for up to 4 hours depending on the fire rating selected. Types of fire rating available are 1, 2 and 3 hours. 2-hour fire rated shutters are the most popular type of fire rated shutters installed in buildings.Fire shutters can be customised to fit the size of your premises.



They also come with a manual hand chain which may be used to raise or lower the shutters in case of a power failure.
Optional items which can be provided are the Electronic Release System, smoke senser tempeture sensor and more.
Fire rated shutters are also sometimes made a requirement for certain types of properties such as factories, shopping malls, hotels and train stations due to fire safety reasons.



APPLICATIONS:

Fire rated steel roller shutter doors are suitable for all establishments, expecially for the areas in high risk of fire. our  fire rated steel rolling shutters can be used for a wide variety of commercial, industrial areas.

  • Retail stores
  • Factories
  • Warehouses
  • Shopfronts
  • Loading docks
  • Kitechens
  • and more

KEY FEATURES:

1,Fire resistance: Fire-resistant rolling shutters have excellent fire resistance, which can effectively prevent the spread of fire and protect the safety of buildings.
2,Fire resistance time: The fire resistance time of fire-resistant rolling shutters usually ranges from 30 minutes to 2 hours, depending on their material and thickness.
3,Thermal insulation: Fire-resistant rolling shutters have good thermal insulation performance, which can effectively reduce the impact of the fire on the surrounding environment.
4,Smoke control performance: Fire-resistant rolling shutters also have good smoke control performance, which can effectively prevent the spread of smoke.
5,Flexible operation: The operation of fire-resistant rolling shutters can be very flexible. It can be controlled by electricity or manually.
6,Long service life: The service life of fire-resistant rolling shutters is usually long, which can reach tens of years or even longer.

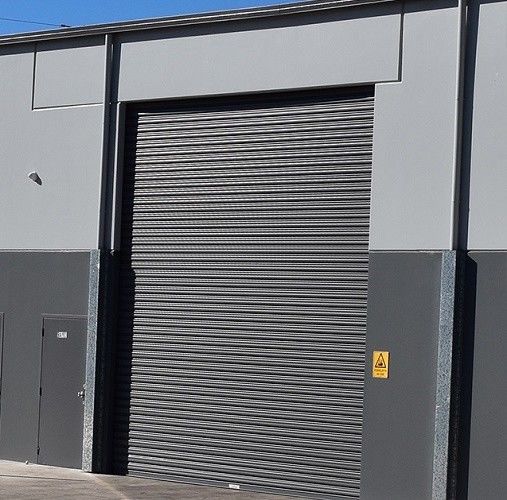

PROJECT PHOTOS



Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 0Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 1Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 2


PRODUCT DRAWING

Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 3


STEEL SLAT PHOTOS:

Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 4Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 5

TECHNICAL SPECIFICATIONS
Curtain:The rolling shutter curtain itself consists of Consisted of solid interlockig galvanized rockwool  insulated steel slats, with steel
end clips on both sides of curtain to prevent lateral movement.
Thickness option: 0.8 mm, 1 mm for both skin of slat, total thickness18mm
Bottom rail:
♦Material: rollformed galvanized steel
♦With plastic end caps on both sides
♦Dimension:40*90mm, Depth*Height

Guide rail:
♦Material: rollformed galvanized steel
♦Dimension:100*60mm, Width*Depth
♦Thickness available: 1.2mm, 1.5mm

Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 6 inches, 8 inches, 10 inches
♦Wall thickness: 2 mm, 2.5 mm, 3 mm, 4 mm

Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in premed finish
♦The brackets can only be installed on a structural fixing surface such as concete, steel columns, steel
angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.

Operation way:
♦Automatic operation with motor(remote controls, switch button)

Optional:
♦Shutter box / hood cover
♦Wicket door



CERTIFICATION

Warehouses / Shopfronts Fire Rated Rolling Shutter Door With Rockwool Insulation 6
FAQ

  • What is the delivery time?

A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.

  • What is your payment items?

A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.

  • Can we place one or two sets for trial?

A: Yes of course, this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge, you just need to handle with the freight. It is a good way to show the sincerity for both of us.

  • How can I know the price exactly?

A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, sales patterns, all of these would be of help us to quote the exact price.

  • Can I order components instead of the full set of door?

A: Yes, as a factory we welcome business clients purchasing components of the door, such as panels, hardware's, motors, etc., to maximize the advantage of our mutual parties.
