Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter

Product Details

Place of Origin: China

Brand Name: Starking

Certification: ISO CNAS

Model Number: SGF80

Payment & Shipping Terms

Minimum Order Quantity: 10 square meter

Price: usd45 to usd75 per square meter

Packaging Details: carton/wooden box

Delivery Time: 30 days

Payment Terms: TT

Supply Ability: 5000 square meter per day

Get Best Price
Contact Now
Specifications
Highlight:

Fire Rated Insulated Roller Shutter

,

Steel Insulated Fire Roller Shutter

,

Galvanized Steel Rolling Fire Shutter

Color:
White, Grey, Brown, Etc.
Control System:
Manual, Automatic, Etc.
Fire Rating:
Up To 3 Hours
Insulation Performance:
Up To Class 4
Material:
Galvanized Steel
Noise Level:
≤50dB
Opening Speed:
0.07m/s-0.1m/s
Opening Way:
Manual, Electric, Remote Control
Safety Device:
Photocell, Infrared Sensor, Etc.
Size:
Customized
Surface Treatment:
Powder Coating, Anodizing, Etc.
Thickness:
1.0mm-2.0mm
Wind Resistance:
Up To Class 5
Color:
White, Grey, Brown, Etc.
Control System:
Manual, Automatic, Etc.
Fire Rating:
Up To 3 Hours
Insulation Performance:
Up To Class 4
Material:
Galvanized Steel
Noise Level:
≤50dB
Opening Speed:
0.07m/s-0.1m/s
Opening Way:
Manual, Electric, Remote Control
Safety Device:
Photocell, Infrared Sensor, Etc.
Size:
Customized
Surface Treatment:
Powder Coating, Anodizing, Etc.
Thickness:
1.0mm-2.0mm
Wind Resistance:
Up To Class 5
Description
Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter

Industrial or commercial fire rated steel roller shutter door



PRODUCT DESCRIPTION

We export a very wide range of steel rolling shutter doors for the industrial places where the opening often require high security and sometimes in very large sizes. Fire rated roller shutters are made of steel and are similar to regular steel roller shutter doors.They are usually used as part of an overall fire strategy to prevent fires from spreading too fast in buildings.



Fire rated shutters are equipped with a thermal fusible link mechanism which causes the shutters to lower on their own once a certain temperature is reached. The descend happens when the brakes of the motor are released.They are sometimes linked to the building's security system and can also be activated once the fire alarm goes off.In the event of a fire, the lowering of the shutters helps to create a compartment within the building to prevent the fire from spreading too quickly so as to enable everyone in the building to escape in time.



They are designed to withstand fires for up to 4 hours depending on the fire rating selected. Types of fire rating available are 1, 2 and 3 hours. 2-hour fire rated shutters are the most popular type of fire rated shutters installed in buildings.Fire shutters can be customised to fit the size of your premises.



They also come with a manual hand chain which may be used to raise or lower the shutters in case of a power failure.
Optional items which can be provided are the Electronic Release System, smoke senser tempeture sensor and more.
Fire rated shutters are also sometimes made a requirement for certain types of properties such as factories, shopping malls, hotels and train stations due to fire safety reasons.


The width and height of a door will often define the model of steel rolling shutter slats to be used as each have
their limits and depend on the security level required. We produce 80mm width double skin steel Rockwool insulated slats with our high automatic roll forming machine, which can produce 500 square meters per day.



APPLICATIONS:

Fire rated steel roller shutter doors are suitable for all establishments, expecially for the areas in high risk of fire. our fire rated steel rolling shutters can be used for a wide variety of commercial, industrial areas.

  • Retail stores
  • Factories
  • Warehouses
  • Shopfronts
  • Loading docks
  • Kitechens
  • and more



KEY FEATURES:
1,Increased Evacuation Time:Our steel curtains are designed and manufactured with durability and strength in mind. The galvanised steel construction not only provides excellent resistance to rust and corrosion, but it also adds an extra layer of protection against forced entry. Plus, with the option to upgrade to a thicker steel curtain, you can rest assured that your property is as secure as possible.Increased Evacuation Time: By containing the fire and limiting its spread, fire-rated roller shutters provide valuable time for property occupants to evacuate safely.
2,Reduced Property Damage: The containment of fire within a specific area greatly reduces the extent of the damage to the property, potentially saving valuable assets and minimising the cost of repairs and restoration.
3,Compliance with Fire Safety Regulations: Installing fire-rated roller shutters in line with local building codes and fire safety regulations helps ensure that your property meets the requisite standards, thus avoiding penalties and enhancing the overall safety of occupants.

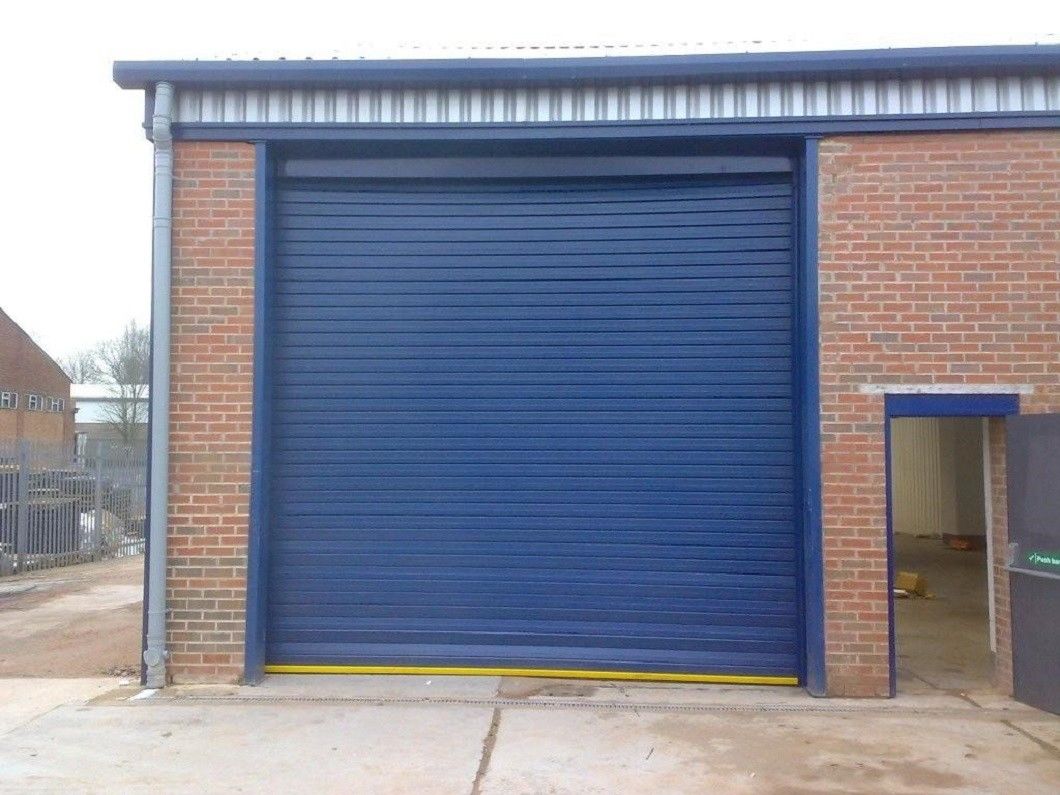

PROJECT PHOTOS

Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter 0Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter 1
PRODUCT DRAWING
Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter 2
STEEL SLAT PHOTOS:
Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter 3Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter 4
TECHNICAL SPECIFICATIONS
Curtain:The rolling shutter curtain itself consists of Consisted of solid interlockig galvanized rockwool  insulated steel slats, with steel
end clips on both sides of curtain to prevent lateral movement.
Thickness option: 0.8 mm, 1 mm for both skin of slat, total thickness18mm
Bottom rail:
♦Material: rollformed galvanized steel
♦With plastic end caps on both sides
♦Dimension:40*90mm, Depth*Height
Guide rail:
♦Material: rollformed galvanized steel
♦Dimension:100*60mm, Width*Depth
♦Thickness available: 1.2mm, 1.5mm
Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 6 inches, 8 inches, 10 inches
♦Wall thickness: 2 mm, 2.5 mm, 3 mm, 4 mm
Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in premed finish
♦The brackets can only be installed on a structural fixing surface such as concete, steel columns, steel
angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.
Operation way:
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Wicket door


CERTIFICATION
Fire Rated Insulated Roller Shutter , Galvanized steel Rolling Fire Shutter 5
FAQ



*What is a fire-rated roller shutter?

A fire-rated roller shutter is a type of shutter made from fire-resistant materials that is designed to withstand fire for a specific period of time. It is typically installed in windows, doors, or other openings in buildings to prevent the spread of fire and protect people and property from harm.



*What materials are used to make fire-rated roller shutters?

Fire-rated roller shutters can be made from a variety of fire-resistant materials, including fire-resistant glass, rocl wool,and other high-temperature resistant materials. The specific material used depends on the desired level of fire resistance and the application.



*What is the typical lifespan of a fire-rated roller shutter?
The lifespan of a fire-rated roller shutter depends on several factors, including the material used, the level of fire resistance, and the frequency and severity of use. In general, however, fire-resistant roller shutters are designed to last for several years and can be expected to remain functional even in the event of a fire.



*How do I maintain a fire-rated roller shutter?
The maintenance requirements for fire-rated roller shutters depend on the specific materials and design used. Generally, they should be inspected regularly for any signs of damage or wear, and if necessary, cleaned and lubricated to ensure smooth operation. If any repairs or replacements are required, it is essential to use the services of a trained professional to ensure the work is done correctly and safely.
